This year, the domestic professional e-sports
equipment brand climb (IPASON) independent research and development strength
continues to increase, climbing (IPASON) gaming desktop, business desktop,
integrated computer and other complete products have been launched,
significantly enriching the choice of computer users
The X-PLUS, a newly-launched mover recently, is
an all-in-one computer developed by IPASON. It is affordable and balanced,
with a hard core combination of Core i5 9400F standard processor and GeForce GT
1030 graphics card, and equipped with a 27-inch LCD display with 100% sRGB wide
color gamut display for users Bringing excellent visual enjoyment, commercial
home is a good choice.
At the same time, the mover-X PLUS also adopts the slim body
design that is very popular at the moment. As a new integrated computer
product, IPASON hopes that it is not only a practical computer, but also an
industrial work that combines the sense of technology and art to add more
modernity to the user's office environment or home environment.
Slim body large screen micro edge
The mover-X PLUS adopts a versatile black design. Whether it
is an office where the elite of the workplace gathers or a warm and lively
bedroom living room, the entrant-X PLUS can be perfectly integrated into a
different kind of scenery.
According to the author's actual measurement, the thinnest
part of this one-piece computer body is less than 9mm thick. Such a slim body design can save desktop space and help users to clean and clean the
desktop environment. In order to achieve a slim body design, the power
adapter of this all-in-one computer has an external design.
The Mover-X PLUS uses a 27-inch LCD display with a 178°
viewing angle and a wide color gamut with 100% sRGB, giving you a whole new
horizon.
Especially worth mentioning is that IPASON has made a full
commitment to the screen of the mover-X PLUS (no highlights or dark spots), and
consumers who have high requirements for screen imaging can also Feel free to
buy and use.
IPASON has a metal frame for the screen of this all-in-one
computer, which provides better protection for the screen and enhances the
texture of the whole machine. The left, right and upper sides of the
screen are designed with a 2.6mm narrow bezel to provide a more powerful visual
effect.
The brand LOGO with the word "IPASON" is designed
at the center of the lower frame of the screen. What is the screen quality
of this one-piece computer? The author used the Starscream color correction
instrument to color it, and finally obtained various color gamut parameters.
Test results show that this display has 100% sRGB, 81% NTSC,
84% AdobeRGB, in line with the official nominal color gamut value, the
performance is very good.
This all-in-one computer with a large metal base provides a
fairly strong support.
The screen of this all-in-one
computer supports an upside down angle adjustment of -10° to 15 degrees.
On the back of the fuselage, climbing the word
"IPASON" is very eye-catching. The red and blue symmetrical
lines on the left and right sides add a bit of personality to this all-in-one
computer.
The power button is located on the left edge of the back of
the unit. When the user sits in front of the machine and extends his right
hand, it is very easy to touch the power button.
The back of the fuselage is designed with a headphone jack, a
headset interface, four USB3.0 ports, a USB2.0 port, a network cable interface,
an HDMI port, and a power connector.
A handle is designed on the top of the metal bracket for the
user to carry the machine.

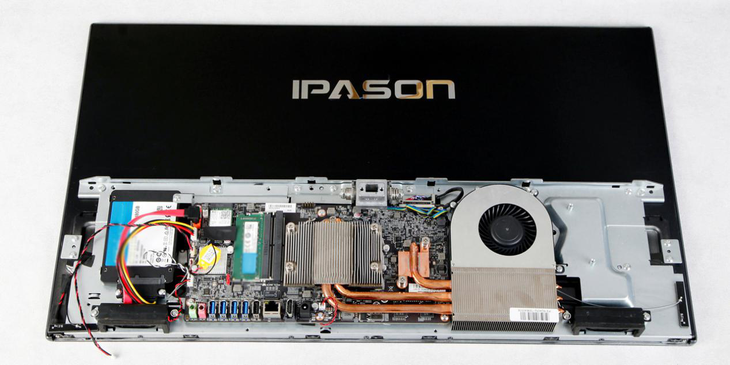

The all-in-one computer's cooling
system is equipped with a large cooling fan and three heat pipes to handle the
Core i5 9400F standard processor with the GeForce GT 1030, allowing the
computer to run safely and quietly. .
This all-in-one computer is designed with two DDR4 memory
slots. The standard 8GB memory has already occupied a slot. Currently,
there is a slot reserved. Users can upgrade and upgrade according to their own
needs and set up a dual-channel memory operation mode.
The storage side uses a solid state drive with a SATA
interface, and an M.2 hard disk with an NVME protocol.
This all-in-one computer comes standard with a wireless mouse
and keyboard set, as well as a tablecloth-style thick mouse pad, which is easy
to use when you get the machine out of the box.
The Core i5-9400F is a mid-range desktop processor on the
market today. It is based on Intel Coffee Lake Refresh architecture
design, 14nm++ manufacturing process, 6-core 6-thread design, clocked at
2.9GHz, single core maximum turbo frequency is 4.1GHz, with 9MB L3 cache and
TDP 65W. Since it is a processor of the F series, it does not have a core
graphics card.
Through the three software tests of CPU-Z, Fritz Chess
Benchmark and CINEBENCH R20, the Core i5-9400F has a powerful performance with
a 480GB SSD. The combination of the two can fully meet the normal working life.
Based on the results of the AS SSD Benchmark and
CrystalDiskMark test software, the 480GB SATA SSD has a sequential read speed
of over 500MB/s and a sequential write speed of over 450MB/s for daily office
entertainment needs. It can be said that it is more than enough.
The GeForce GT 1030 is an entry-level graphics card. It is
based on Pascal architecture, with 384 CUDA cores, 16 raster units and 24
texture units, with 2GB capacity and 64bit wide GDDR5 memory.
Next,
I will experience the 3DMark benchmark test, as well as the popular games with
the medium configuration requirements of Fortress Night and Sniper Elite V2
Remastered Edition to experience the game performance of this all-in-one
computer.
3DMark is currently the most widely used game graphics test
software. The author selected four test items: TimSpy, FireStrike, Sky
Diver, and Cloud Gate.
Through the results of the 3DMark benchmark, we can get a
general understanding of the performance of the GT 1030 entry-level graphics
card is still very powerful.
Popular
games measured - "Fortress Night"
The world-famous Fortress Night is a chicken game developed
by Epic Games and People Can Fly. It combines “eat chicken” with
construction. In the game, the player will play a young person who participates
in the selection, compete with other opponents, decide the final winner, and
lead everyone to save the village and defend the home.
Since "Fortress Night" did not design the Benchmark
program, I chose a fixed scene, used Fraps software to record the number of
frames, and set the frame limit to "unlimited".
In
the middle of the game's preset medium quality, the game is maintained at more
than 60 frames, and there is no problem playing. When switching to high
quality, most of the game's scene can be maintained at more than 30 frames, and
occasionally dropped below 30 frames.
Hot
game measured - "Sniper Elite V2 Remastered Edition"
Sniper Elite V2 Remastered is a shooting game developed and
released by Rebellion. In the game, the player will play the elite sniper
Carl Fairborn to stop the Nazi V2 rocket technology from falling into the hands
of the Soviet Red Army. Players must help important scientists who are
desperate to defect to the United States and eliminate those who block the way. Players
need to be patient with each other between the two armies, using wisdom to
complete the task.
In the high-definition quality of this game, the game is
maintained at more than 40 frames, and it is perfectly fine to play.
Thermal test
Using the pressure test that comes with AIDA64, I will conduct
a thermal test on this notebook. (Note: The room temperature of the author
is maintained at around 26 degrees Celsius)
In the state of the grill, the CPU's full load temperature is
less than 80 degrees Celsius, and the CPU's full load temperature is less than
70 degrees Celsius. This performance is enough to prove the reliability of this
all-in-one computer cooling system, users can use it with confidence.
While performing the AIDA64 stress test, the author also used an
infrared thermal imager to perform a thermal imaging scan of the front and back
of the all-in-one computer. In the fully loaded state, the temperature of
the lower frame of the front screen of the machine is higher; on the back side,
the temperature of the right fan area is higher, while the temperature of the
left interface area is very normal, and the user will not be affected when
plugging and unplugging the external device. The feel of the heat sink is still
very reasonable.
Product summary
The climber-X PLUS has a 100% sRGB wide color gamut display, a
powerful standard i5 six-core processor and a slim and stylish body design,
which left a deep impression on the author. For everyday work, whether
it's text, photo processing, or data processing, the performance of this
all-in-one computer is excellent enough, and it's easier to assemble and more
flexible than a desktop. Even for home entertainment, aside from some of
the more demanding games, this all-in-one computer is perfectly suited to our
needs.
Such an integrated computer with both office and entertainment,
its current reference price is only 4,999 yuan. Such a balanced hardware
configuration in the integrated computer market below 5,000 yuan can be said to
be very conscience. In addition, Climb is also committed to providing a
three-year free home-to-sales service policy, consumers can rest assured to buy
and use.
